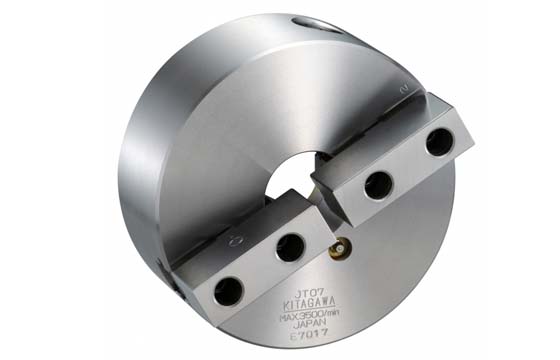

JT Series

The JT Series 2 Jaw scroll lock Manual Chucks are the optimum solution for gripping valves, pip joints and other irregularly shaped components.




Part Number: JT Series Category: Tags: , , ,

Description

View the PDF attachment for various models of this series.

Model JT07 JT09
Gripping Range (mm)
Min. – Max.
External Gripping 4 – 180 5 – 220
Internal Gripping 62 – 170 70 – 210
Handle Torque (N·m) 73.5 98
Max. Static Gripping Force (kN) 20.7 24.7
Max. Speed (min-1) 3500 2900
Net Weight (kg) (with Soft Top Jaws) 12.6 21.4
Moment of Inertia (kg·m2) 0.065 0.16
Matching Jaw Soft jaw for JT07 for JT09
Hard jaw – –

Additional information

Brand

Kitagawa
